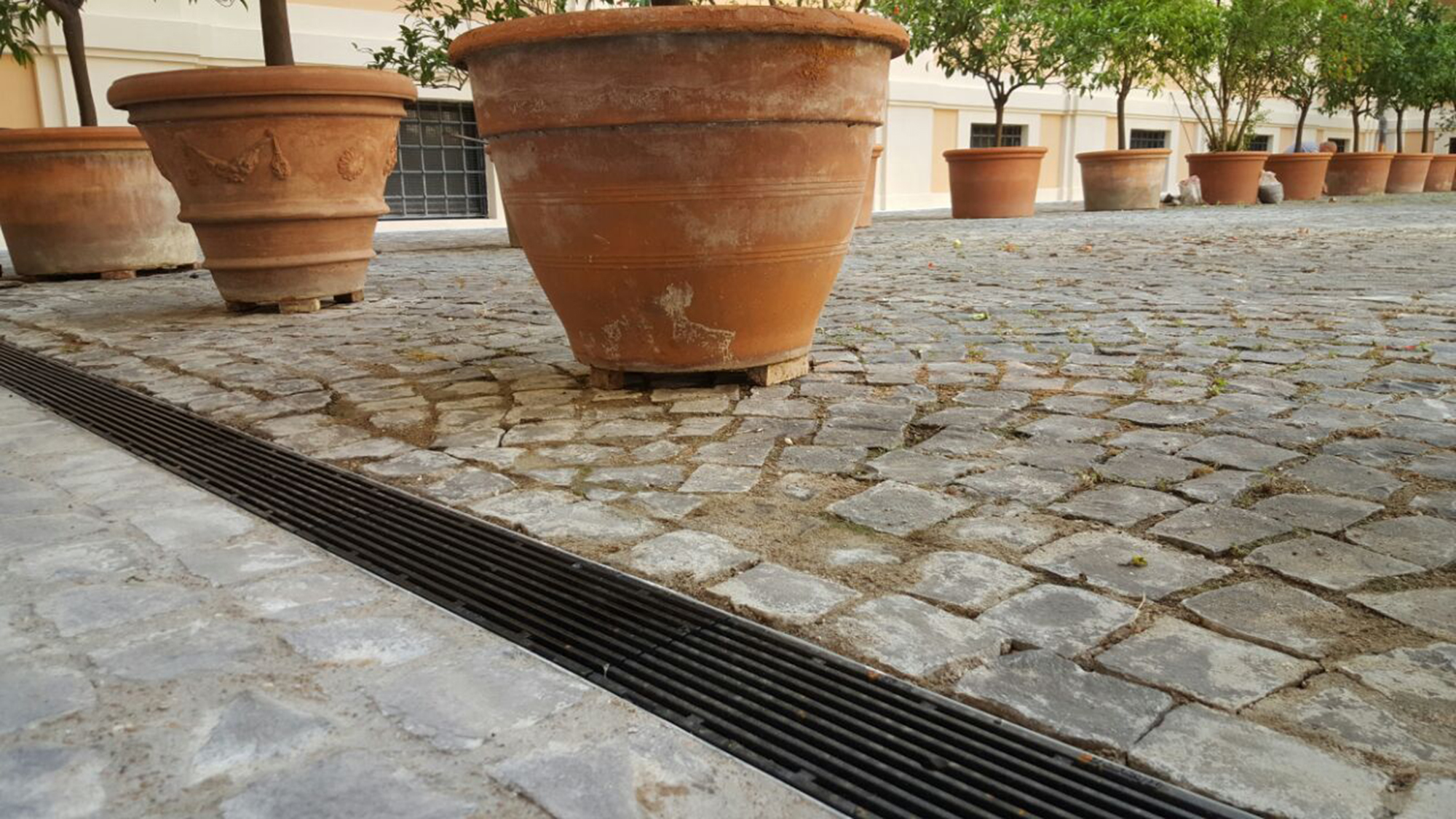

FASERFIX KS drainage channel | commercial & public areas
IDEAL FOR: applications with high loads up to class F 900, such as traffic areas for commercial and public areas.
YOUR BENEFITS WITH FASERFIX®KS
HIGH PERFORMANCE ANGLE HOUSING & SIDE-LOCK
- 20 mm x 20 mm angle housing and inlaying grating
- extremely stable connection between steel angle housing and concrete channel body
- 10 fixing points for gratings per metre (incl. 2 times with optional locking handle)
- extra protection against lateral movement
- 90 % time savings in fixing the grating withSIDE-LOCK (compared to a conventional fixing)
- replace and insert the grating without any special tool a screwdriver is enough
= Garancija kvalitete | Ušteda
NUMEROUS GRATING OPTIONS
- made of ductile iron , composite, galvanised or stainless steel
- narrow slot width for pedestrian areas available
= Fleksibilnost
HIGH STABILITY
- maximum lateral stability through extra thick walls compared to many competitors‘ products for additional security in extreme situations

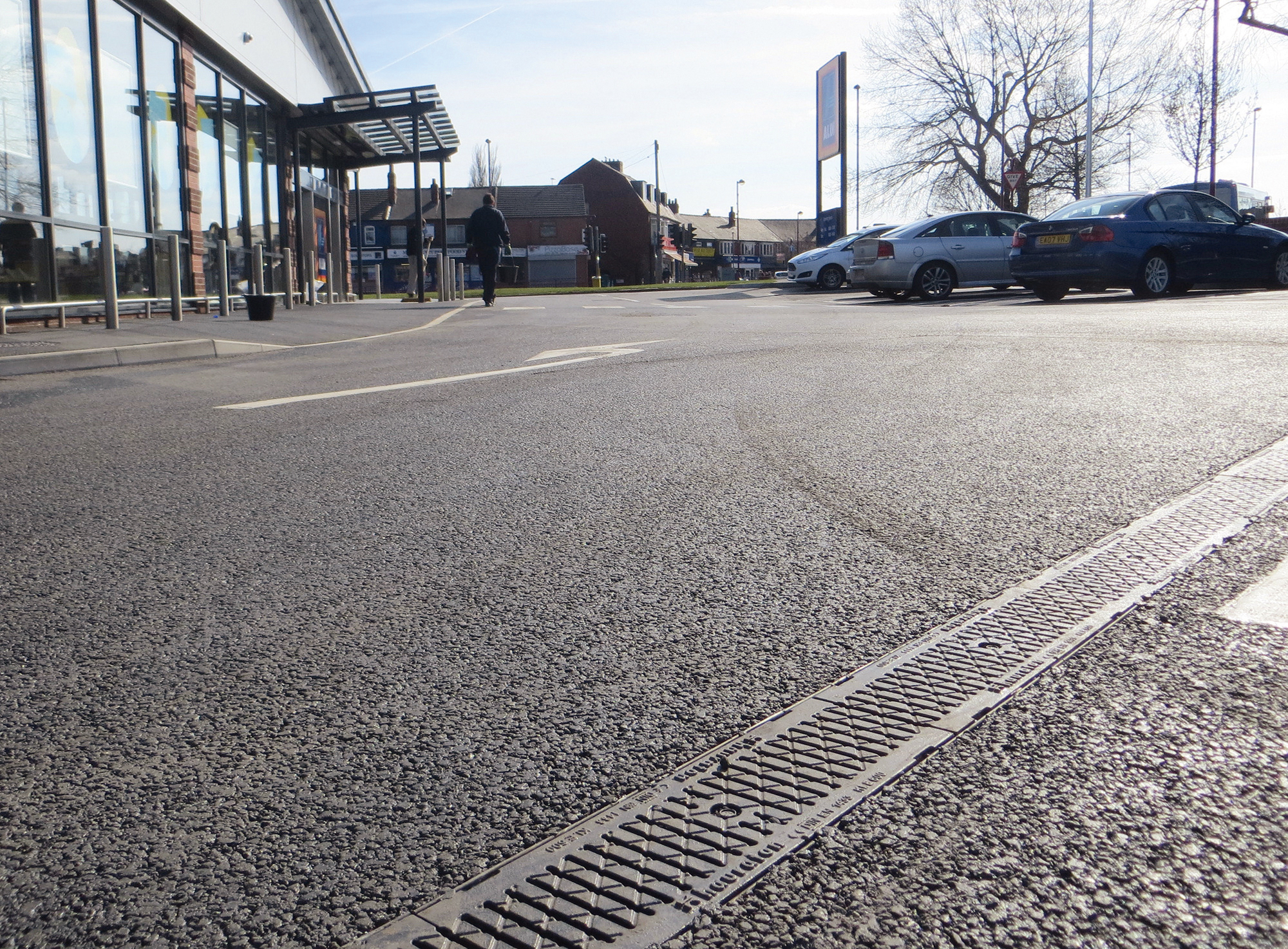

- installation for asphalted surface up to class E 600 without concrete stretcher
= Garancija kvalitete | Garancija trajnosti svojstava
HIGH-TECH MATERIAL
- „Made in Germany“
- maximum stability through fibre - reinforced concrete (polypropylene fibres) with low weight
- adheres well to foundation concrete (same coefficient with regard to thermal expansion)
- installation without grating possible
- fire resistance class A1 (not flammable) according to DIN 4102
= Garancija kvalitete | Garancija trajnosti svojstava

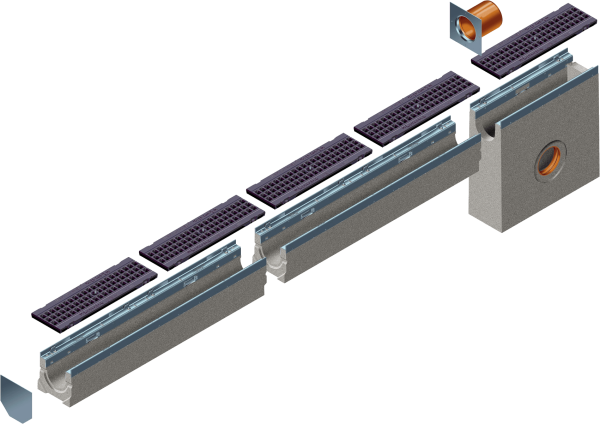

Detaljni prikaz sustava

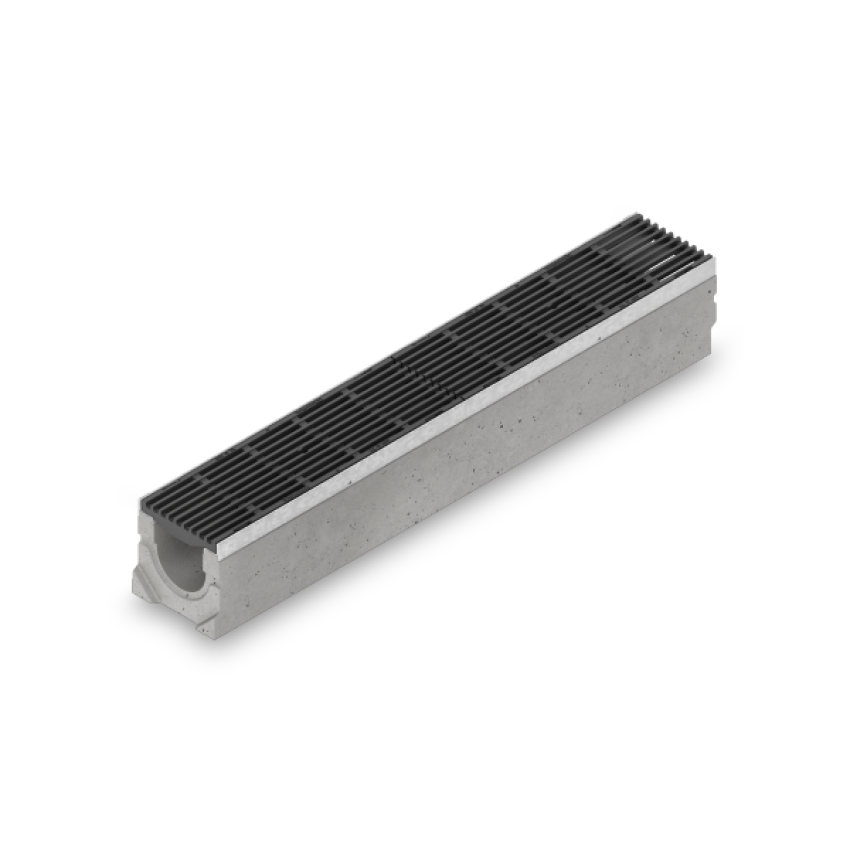

Kanali izrađeni od betona ojačanog vlaknima, prema DIN V 19580 / EN 1433, u skladu s CE normom, sa sigurnosnim spojem, s okrivom od pocinčanog ili nehrđajućeg čelika i bezvijčanim sustavom pričvršćivanja SIDE-LOCK s muško-ženskim spojevima za točnu ugradnju
različite mogućnosti rešetki, npr. GUGI lijevano željezne mrežaste rešetke
Slivnik s mogućnošću spoja na cijev na 3 mjesta, integrirani KG nastavkom DN 100 i pomičnom kantom za nečistoće
Završna stijenka s izljevom
Završna stijenka s izljevom
