RECYFIX MONOTEC monolithic drainage channel

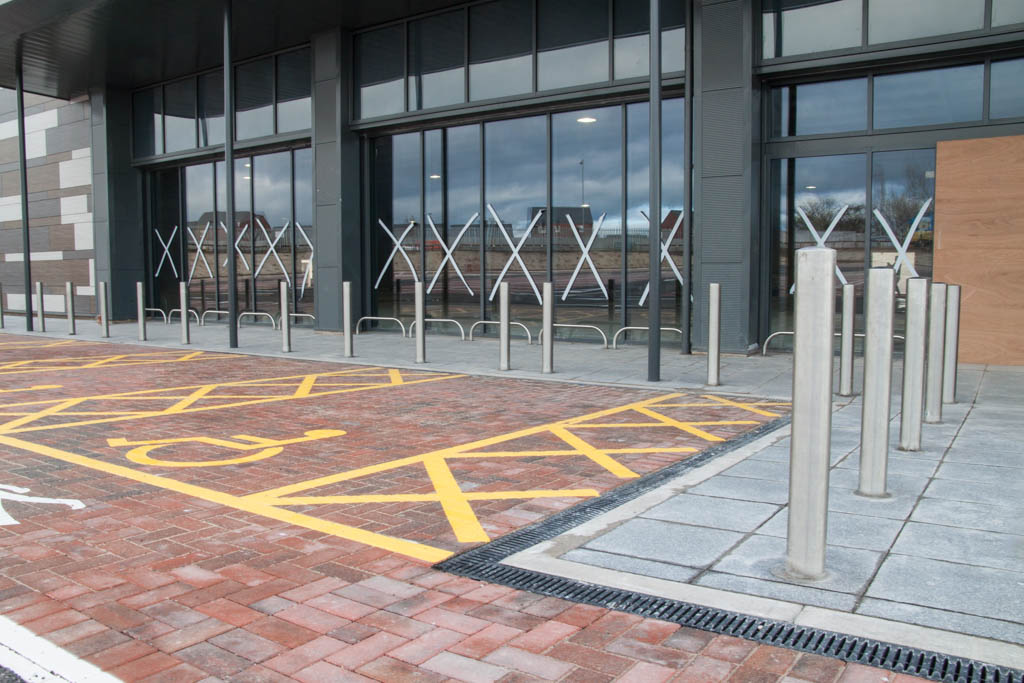

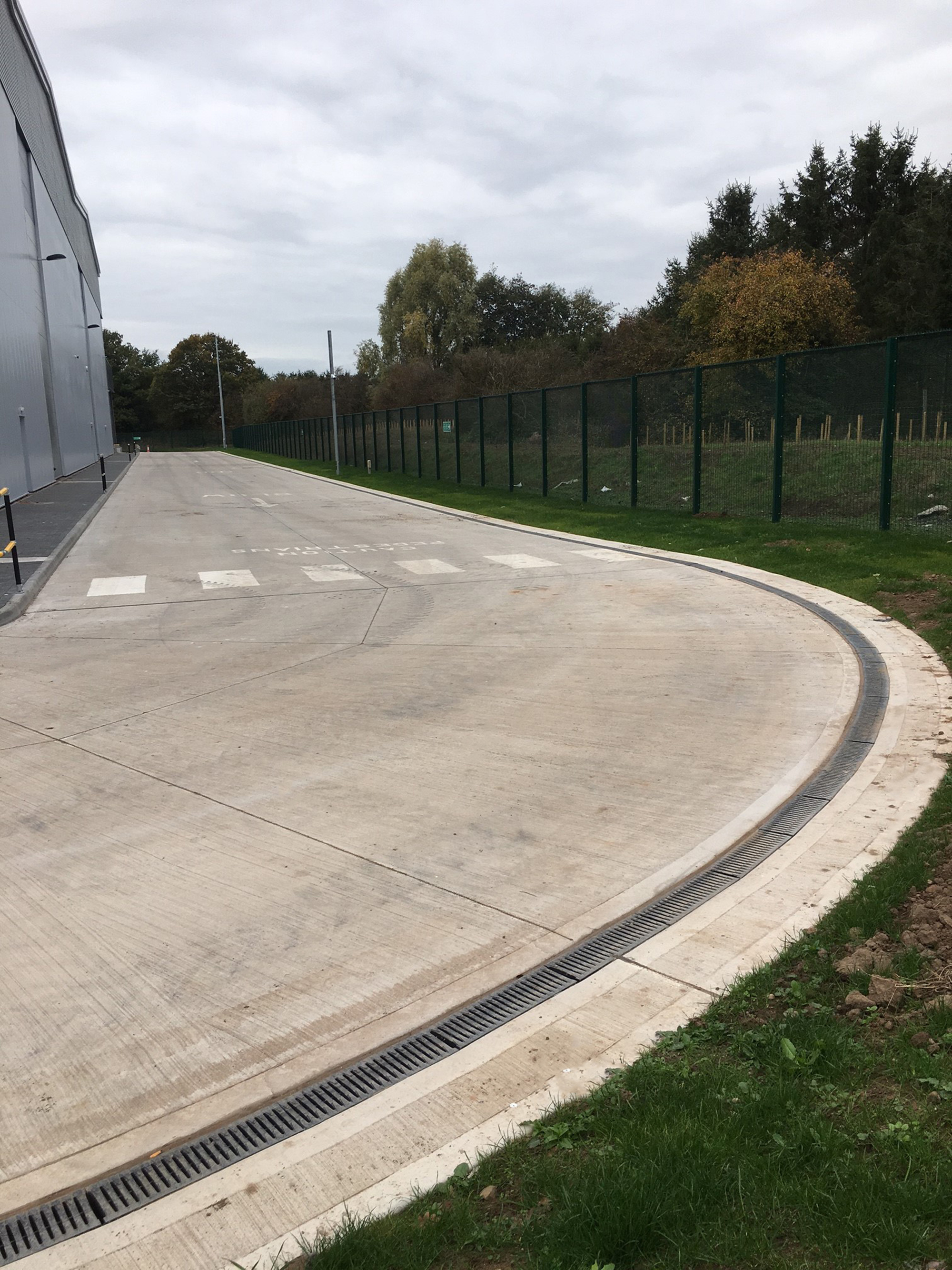

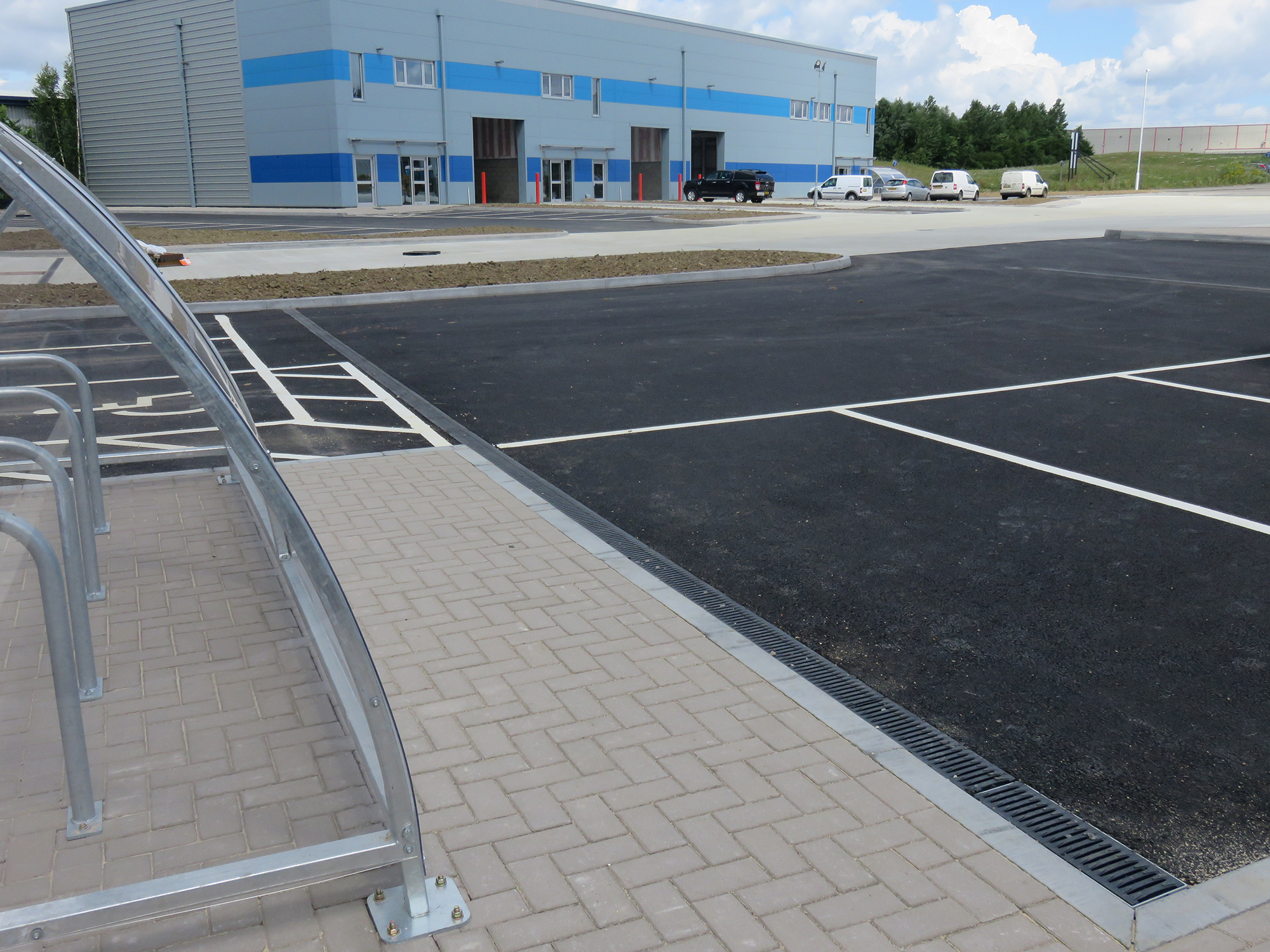

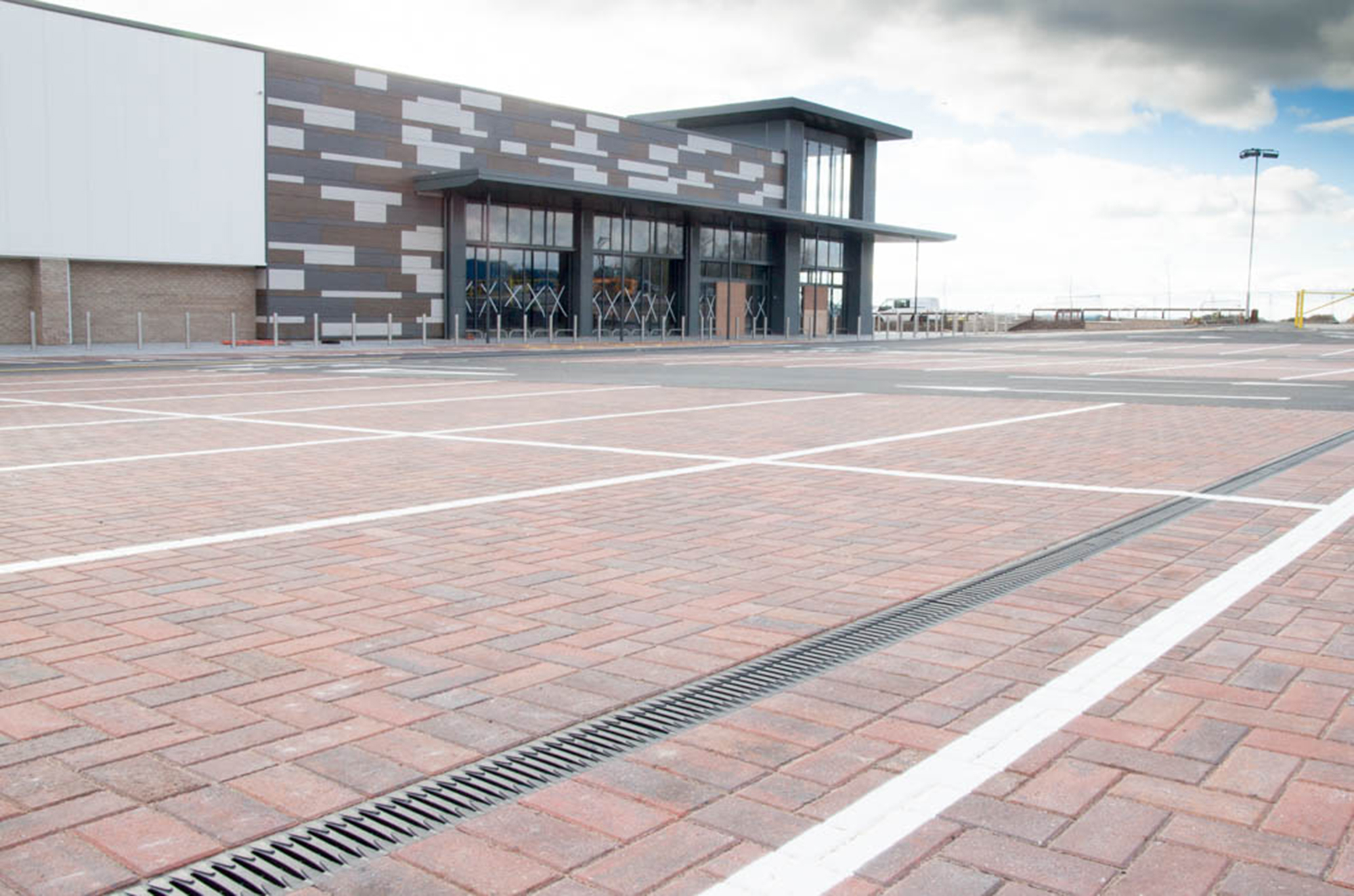

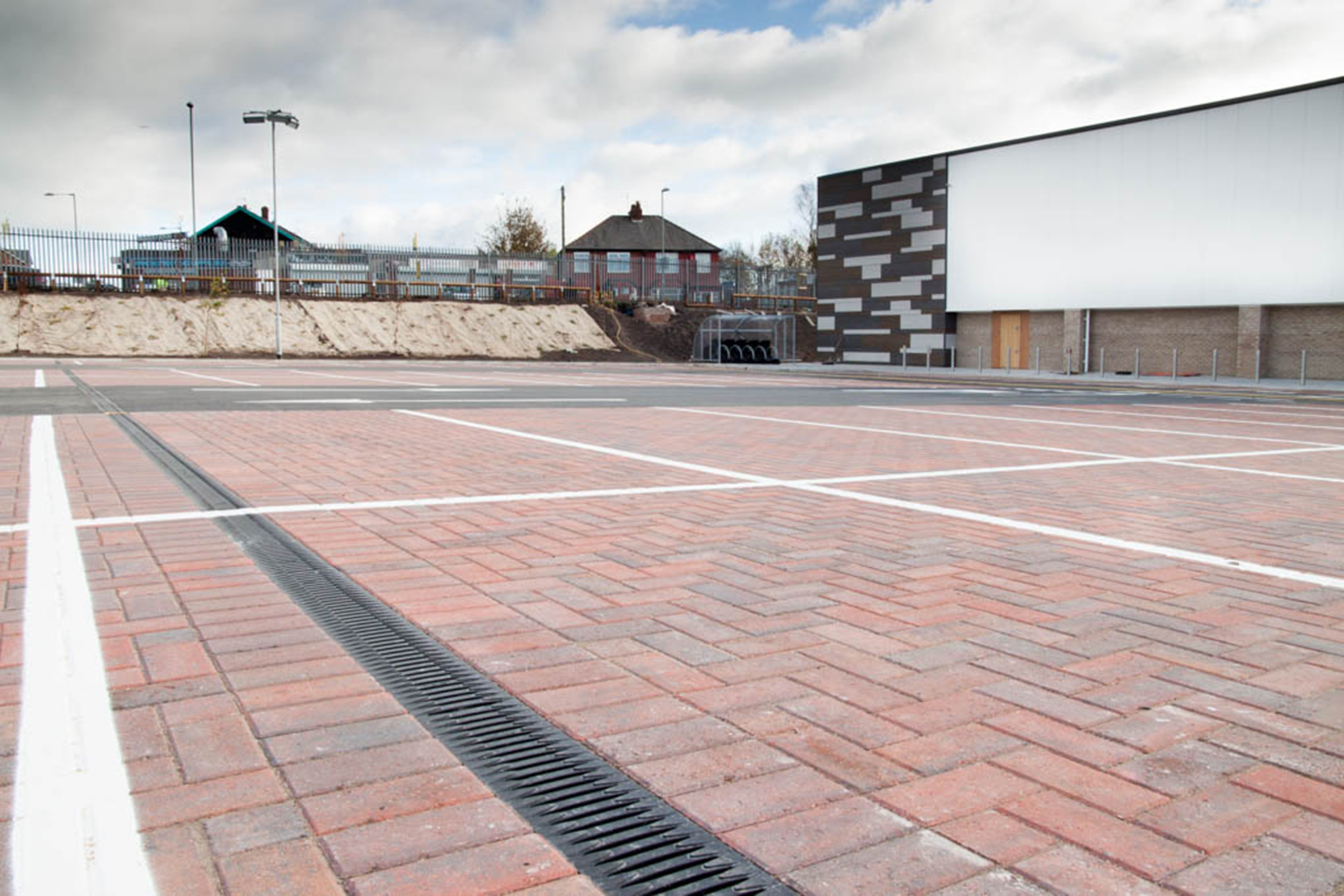

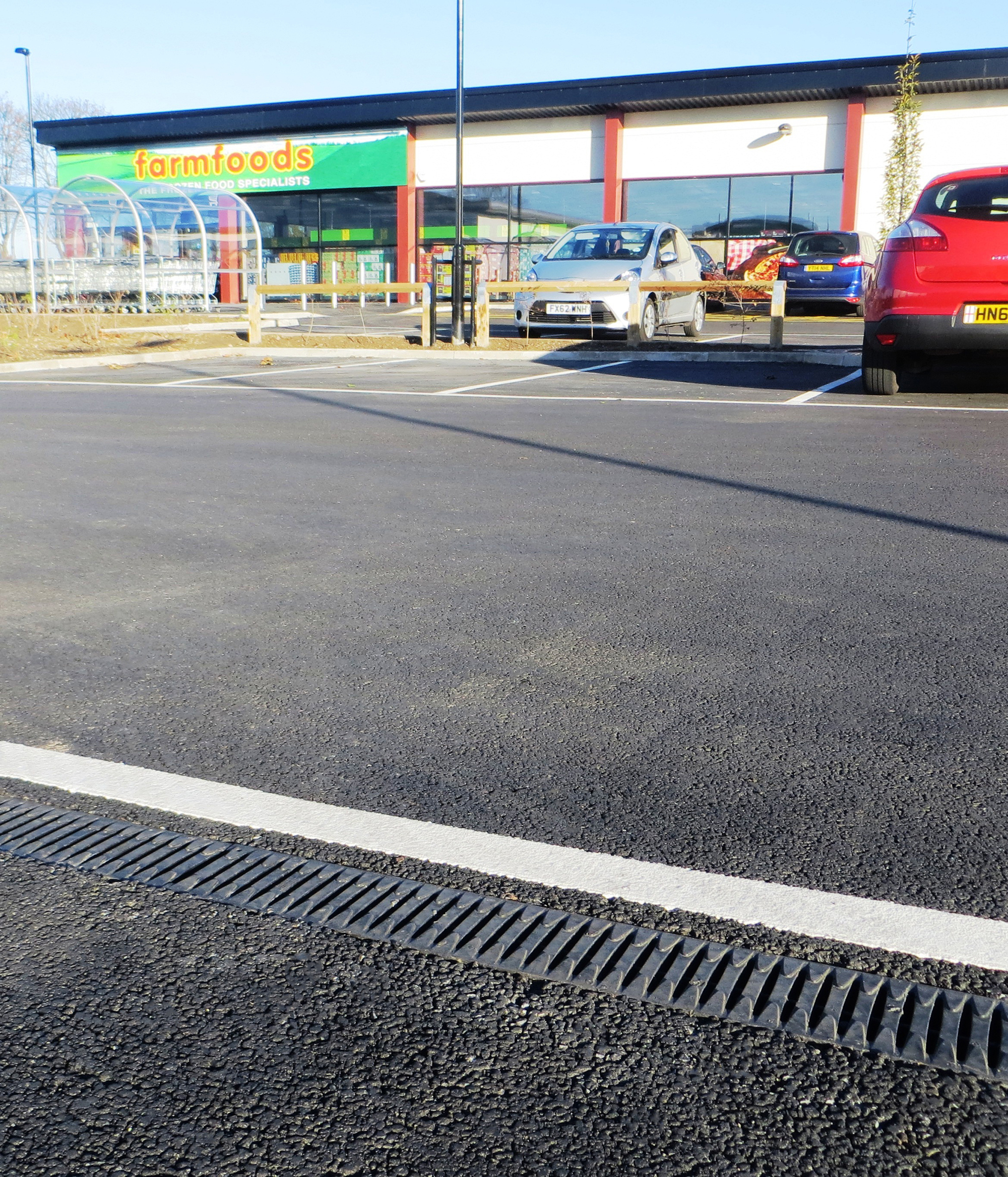

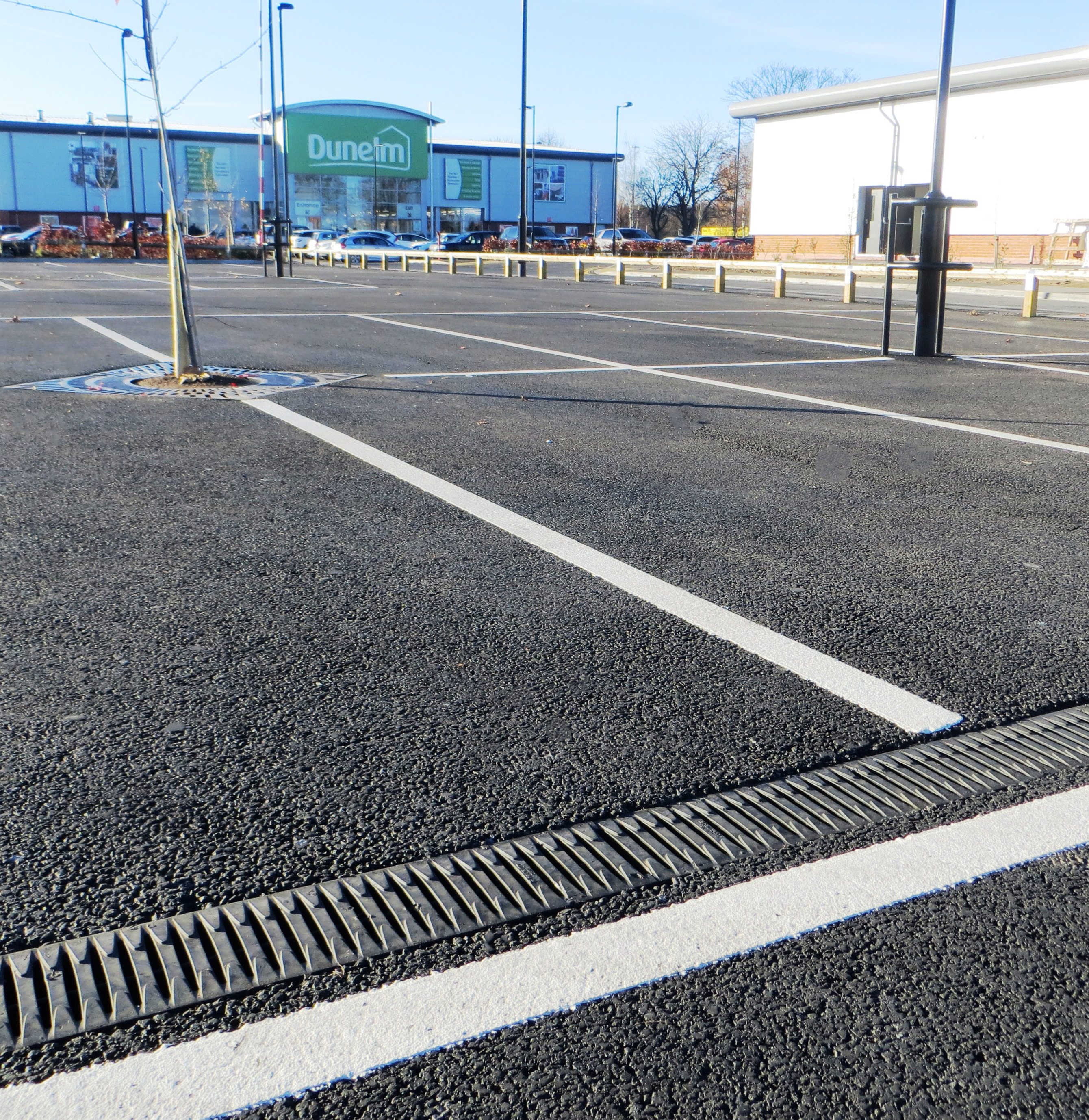

IDEAL FOR: heavily frequented applications with high retention volume up to class D 400, such as supermarkets, car parks and petrol stations.
YOUR BENEFITS WITH RECYFIX MONOTEC
VERY HIGH HYDRAULIC CAPACITY
- optimised inlet surface with FIBRETEC design
- high volume through slim channel construction
Example:
RECYFIX®MONOTEC 200 - capacity 746 cm2 = 74,6 litre/metre
= Garancija trajnosti svojstava
UNBREAKABLE
- elastic and especially resistant material (PP)

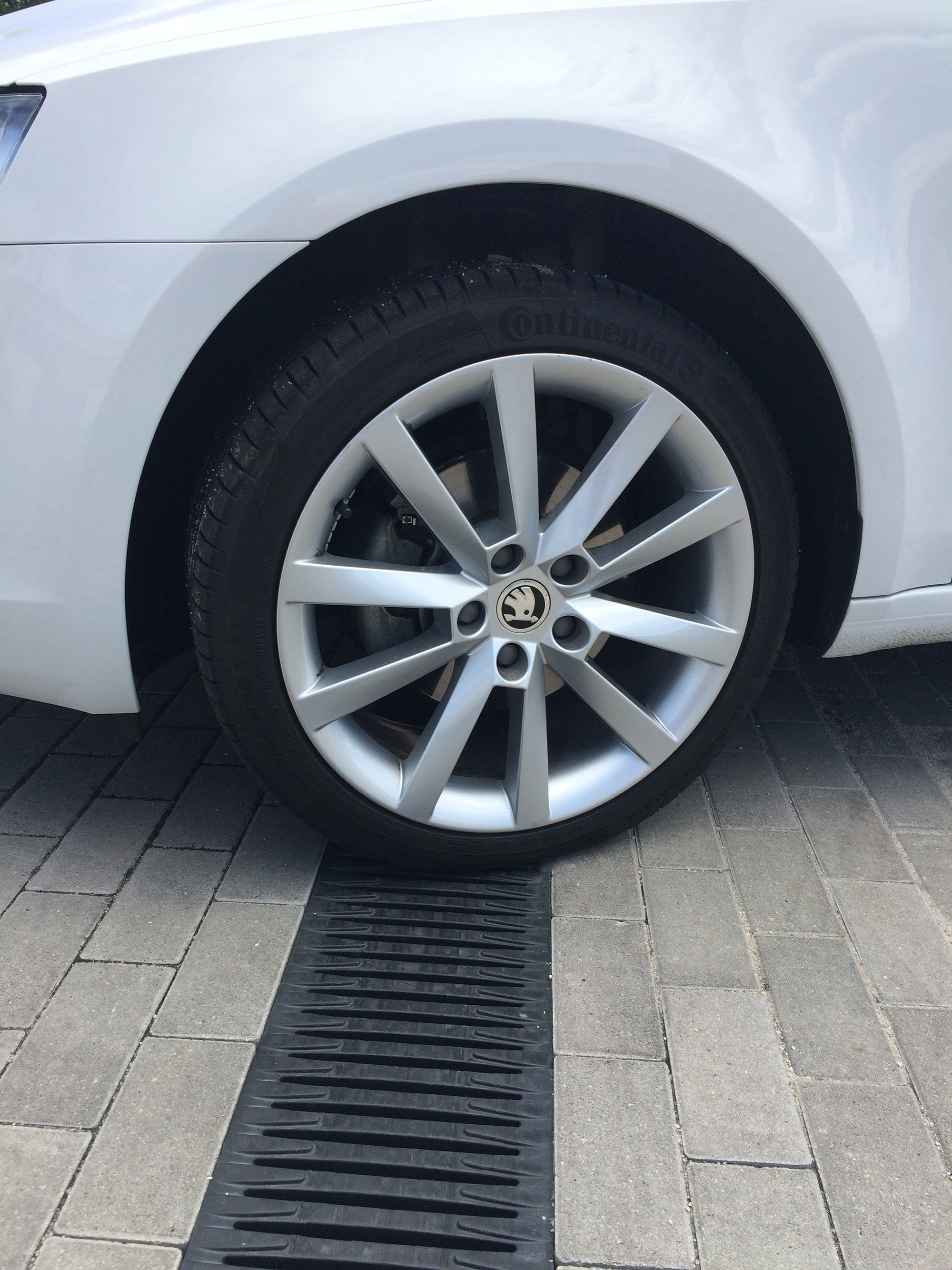

- resistant to traffic volume and temperature differences in daily use
= Garancija trajnosti svojstava | Garancija kvalitete
HIGH RESISTANCE
- high resistance to frost, de-icing salt and UV light
- withstands high temperature differences
- chemical-resistant
= Garancija trajnosti svojstava | Garancija kvalitete

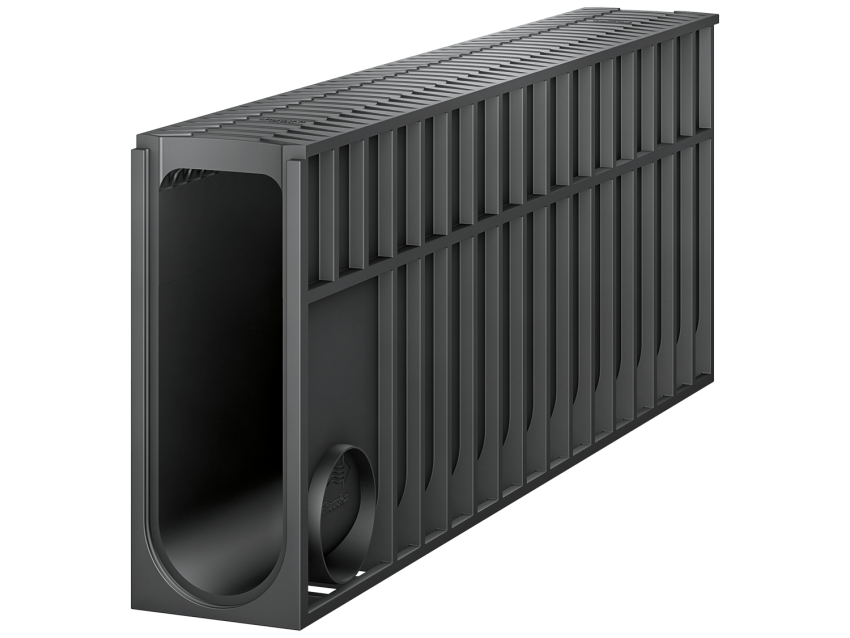

MONOLITHIC DRAINAGE CHANNEL FOR HIGHEST STABILITY
= Garancija trajnosti svojstava | Garancija kvalitete
MONOLITHIC DRAINAGE CHANNEL FOR HIGHEST STABILITY
- manufactured with two parts, which are joined together into a monolithic channel in a mirror welding process. In the mirror welding process the joining surfaces are heated with heating elements (= mirror) and finally pressed together. All this is done without any additional connecting material. Afterwards, the connections are extremely reliable.
- vandal-proof
- permanently withstands frequent traffic
= Garancija trajnosti svojstava | Garancija kvalitete
LOW MAINTENANCE
- easy cleaning by rinsing through the inspection box
- durable high-quality appearance
= Ušteda | Ušteda vremena
LOW WEIGHT ENSURES EASY HANDLING ON SITE
- significantly lighter than channels made of mineral material
- especially easy transport and fast Installation
Example: RECYFIX®MONOTEC 200 - weight 16.30 kg
= Ušteda | Ušteda vremena

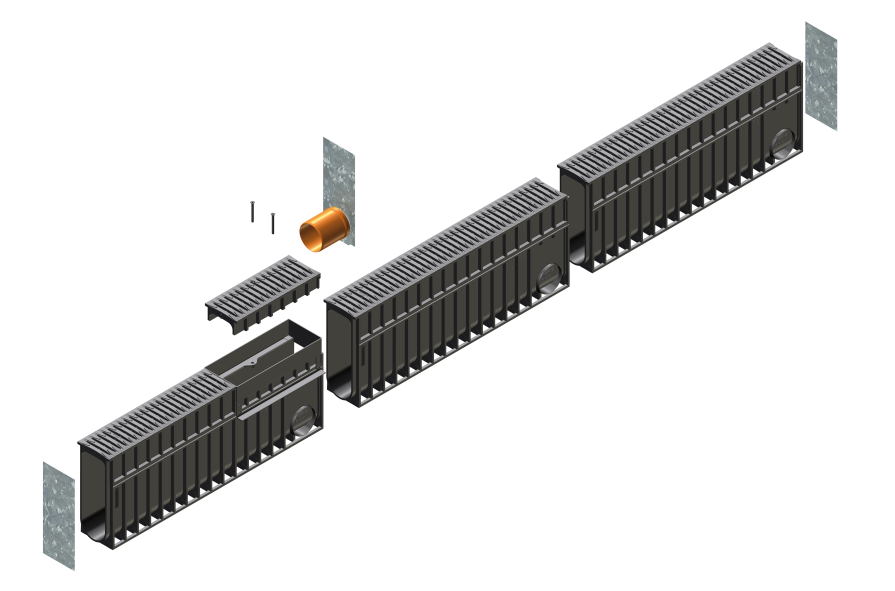

Detaljni prikaz sustava

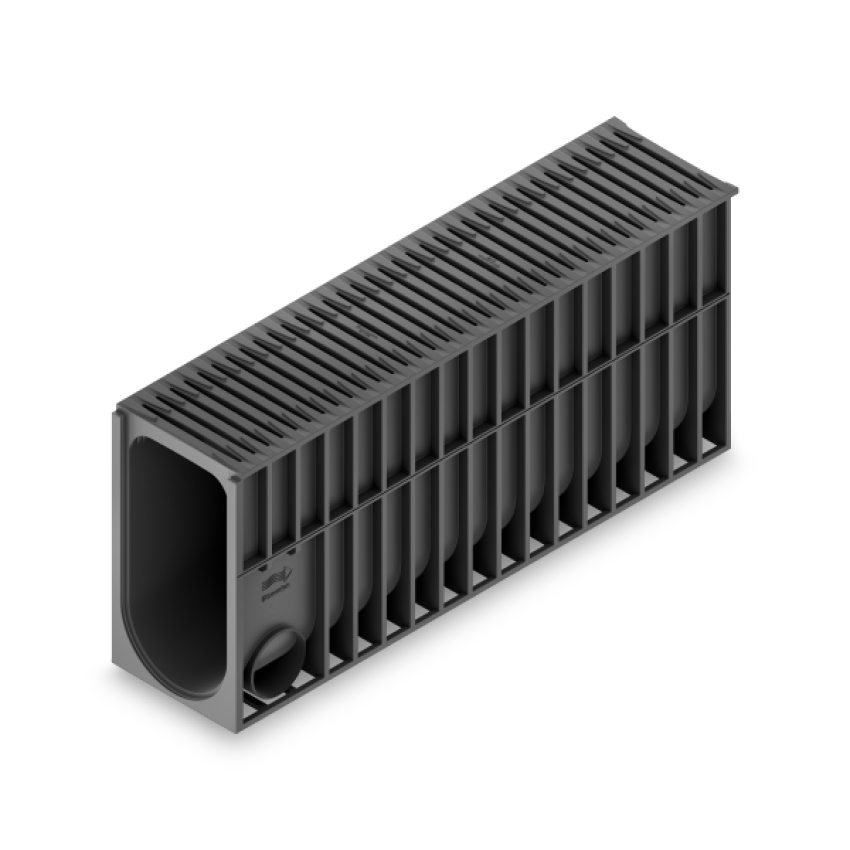

RECYFIX MONOTEC kanali izrađeni od modificiranog polipropilena, prema DIN EN 1433, CE u skladu.
Slivnik izrađen od pocinčanog čelika s mogućnosti spajanja cijevi DN200, odvojiva rešetka izrađena od modificiranog polipropilena za pristup sustavu kanala
Spojna ploča za fleksibilno spajanje različitih tipova kanala sa slivnikom i stijenkom za zatvaranje slivnika.
Spojna ploča za fleksibilno spajanje različitih tipova kanala sa slivnikom i stijenkom za zatvaranje slivnika.
Završna stijenka za početak kanala/završetak kanala
(DN 100).
Završna stijenka za početak kanala/završetak kanala
(DN 100).
