RECYFIX NC heavy duty drainage made of recycled composite

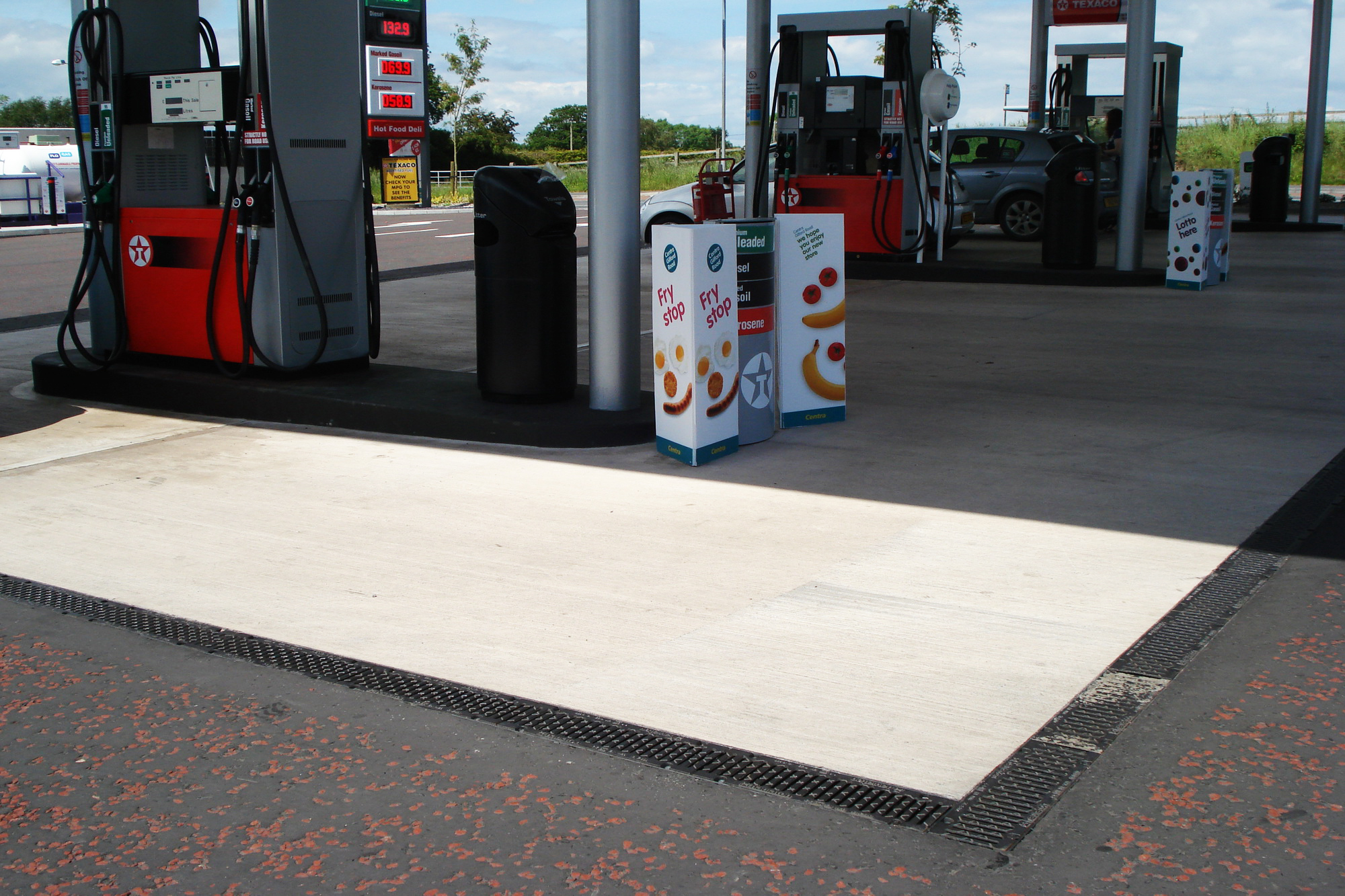

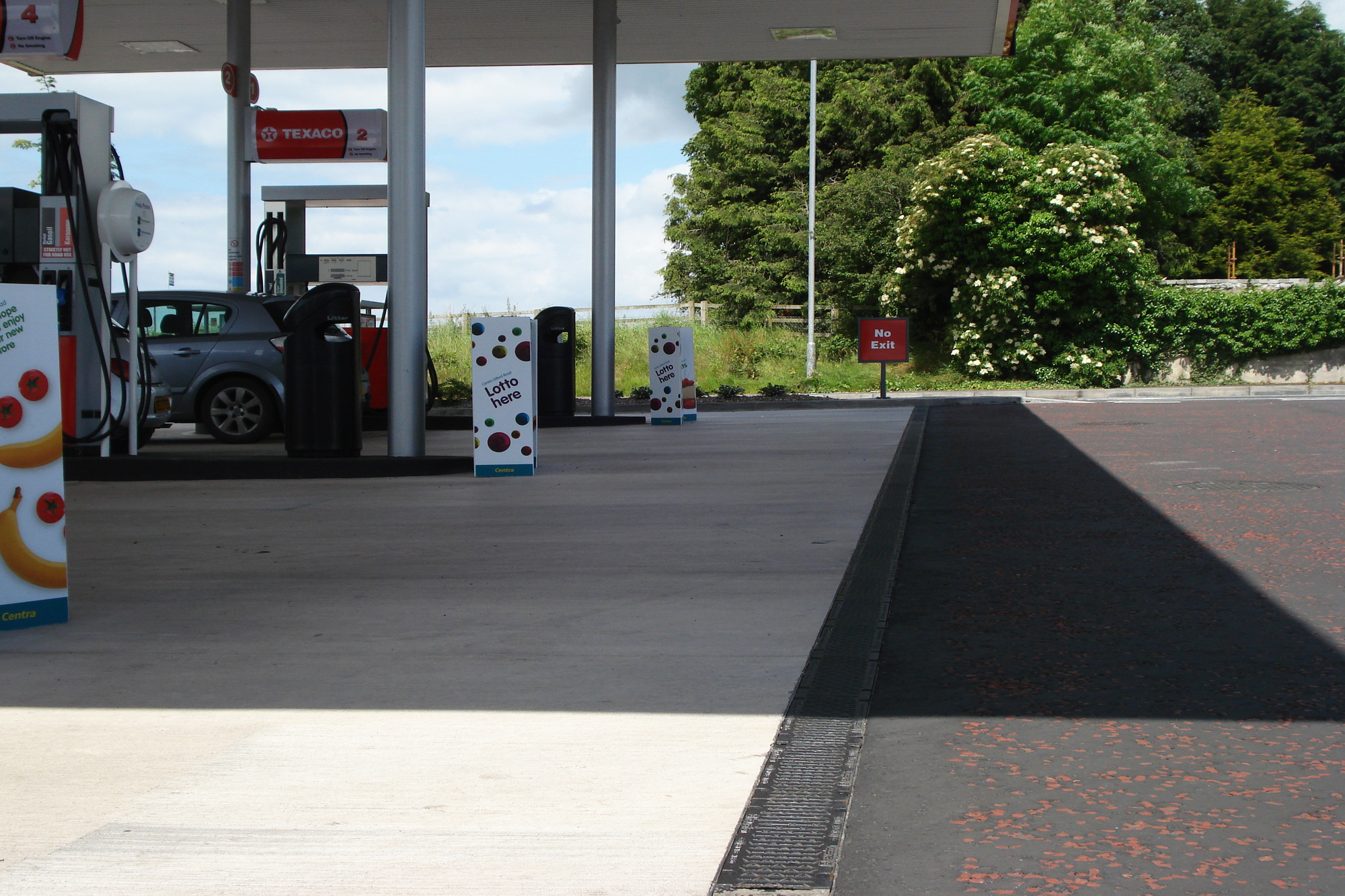

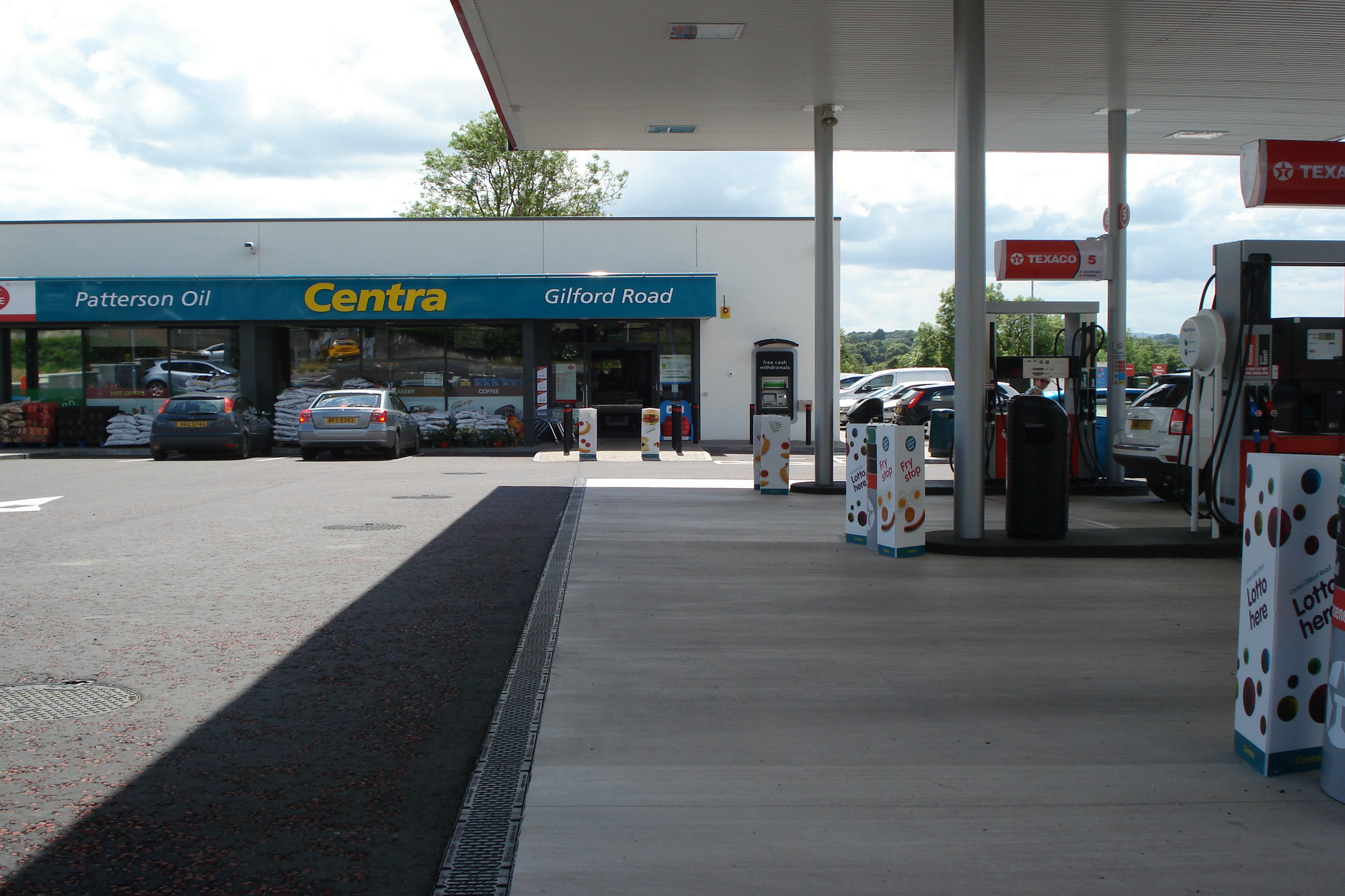

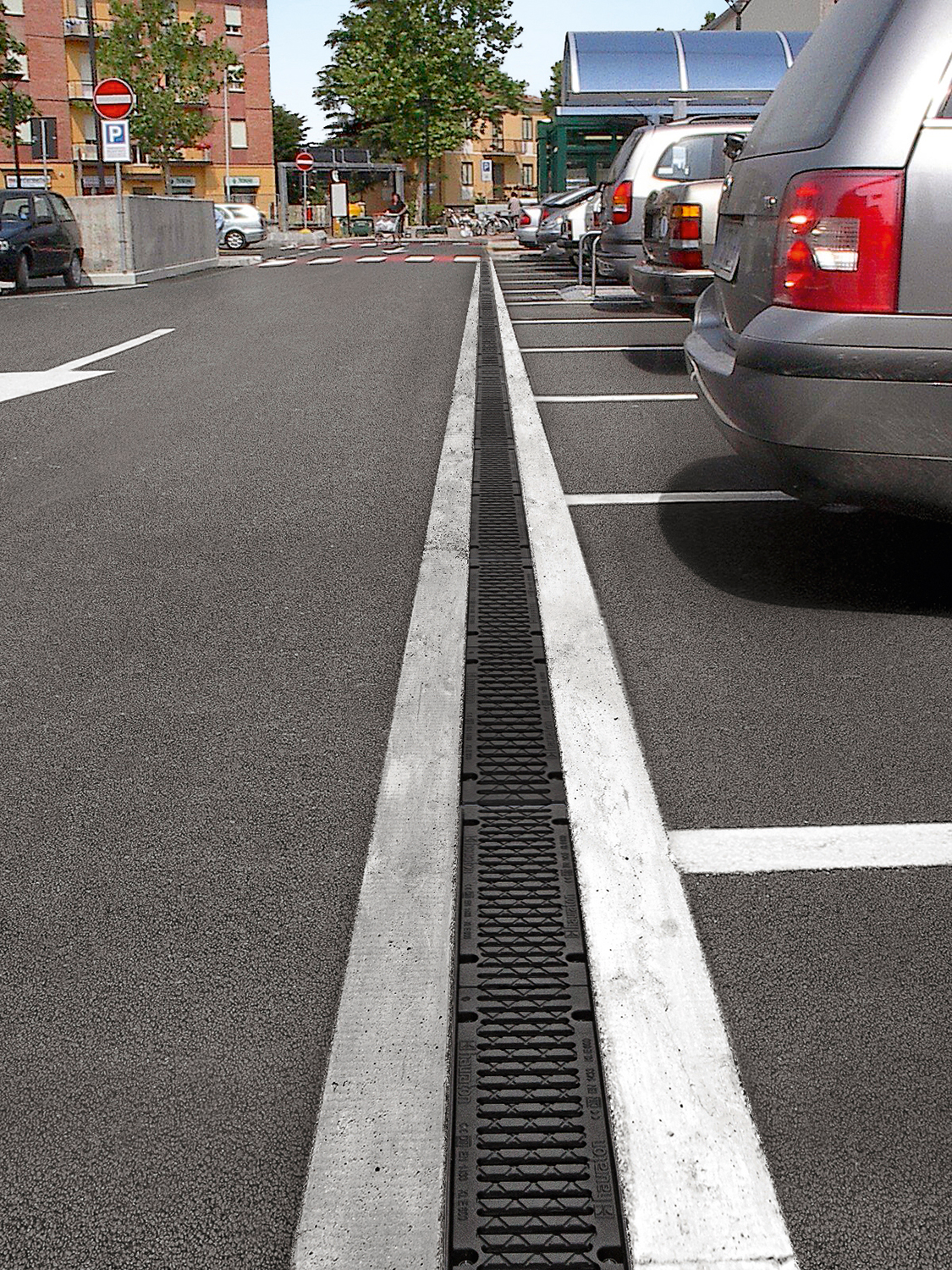

IDEAL FOR: heavy duty applications with higher traffic up to class E 600, such as car parks, industrial estates and petrol stations.
%s


IHRE NUTZEN MIT RECYFIX NC

VERY HIGH STABILITY

= Garancija trajnosti svojstava | Garancija kvalitete
POKAŽI DETAJLE

VERY HIGH STABILITY

  • massive ductile iron grating
  • RECYFIX®NC 100, 200, 300: load class E 600
  • RECYFIX®NC 400: load class D 400
  • 8-fold bolted per metre
= Garancija trajnosti svojstava | Garancija kvalitete

INTEGRATED ANGLE HOUSING

= Garancija trajnosti svojstava
POKAŽI DETAJLE

INTEGRATED ANGLE HOUSING

  • according to EN 1433
  • molded as integral part of the channel body (made of PP)
  • ridges to stop any lateral movement
= Garancija trajnosti svojstava

EASY HANDLING ON SITE

= Ušteda vremena | Ušteda
POKAŽI DETAJLE

EASY HANDLING ON SITE

  • much lighter than channels made of polymer / resin concrete
  • easy transport and installation Example (complete system - 1 m channel incl. gratings) NW 100 = 10.7 kg, NW 200 = 20.8 kg
= Ušteda vremena | Ušteda


HIGH-GRADE MATERIAL

= Garancija trajnosti svojstava | Garancija kvalitete
POKAŽI DETAJLE

HIGH-GRADE MATERIAL

  • RECYFIX® - stable and almost unbreakable
  • elastic and especially robust material
  • withstands high loads and temperature differences in daily use
  • 100 % recycled composite body (and also 100 % recyclable) ---> 100 % environmentally friendly
  • 0 % water absorption
  • smooth inner surface for superior flow characteristics
  • non-conductive
  • PP channel body can be cut, drilled and worked easily on site
= Garancija trajnosti svojstava | Garancija kvalitete

HIGH RESISTANCE

= Dugotrajnost | Garancija kvalitete
POKAŽI DETAJLE

HIGH RESISTANCE

  • high resistance against frost, de-icing salt and UV-rays
  • withstands high temperature differences
  • for climate ranges from - 50 °C to + 80 °C and more
= Dugotrajnost | Garancija kvalitete

PRE-ASSEMBLED READY FOR INSTALLATION

= Minimiziranje troškova
POKAŽI DETAJLE

PRE-ASSEMBLED READY FOR INSTALLATION

  • channel and grating = one part
  • no spare parts
  • easy handling in stock and on construction site
  • cost-efficient transport
= Minimiziranje troškova


SELF-CENTERING BOLT

= Ušteda | Garancija kvalitete
POKAŽI DETAJLE

SELF-CENTERING BOLT

  • the bolt automatically finds the right position
  • bolts easily detachable even after years of use
= Ušteda | Garancija kvalitete

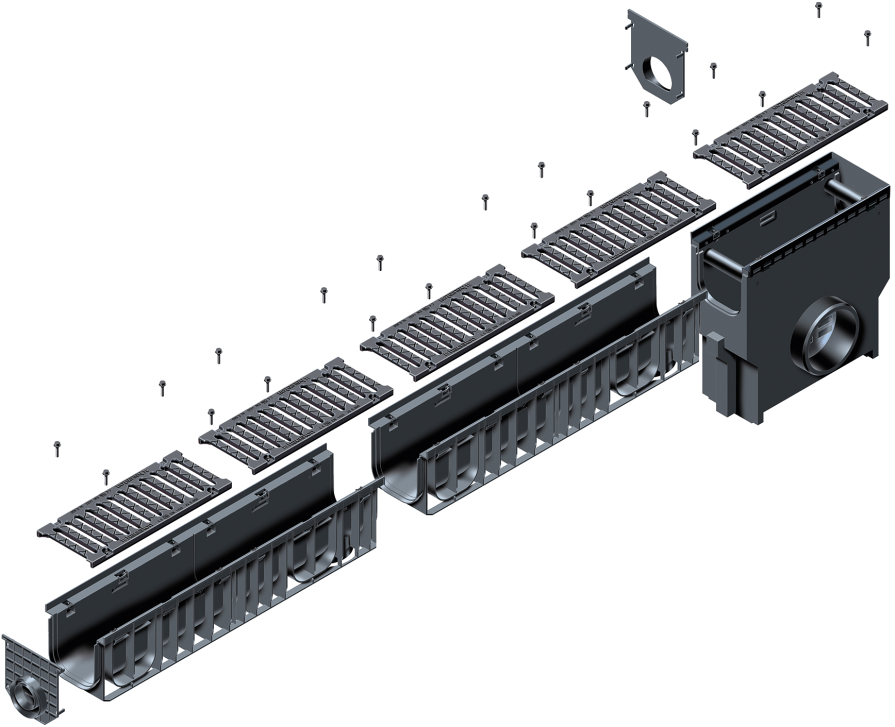

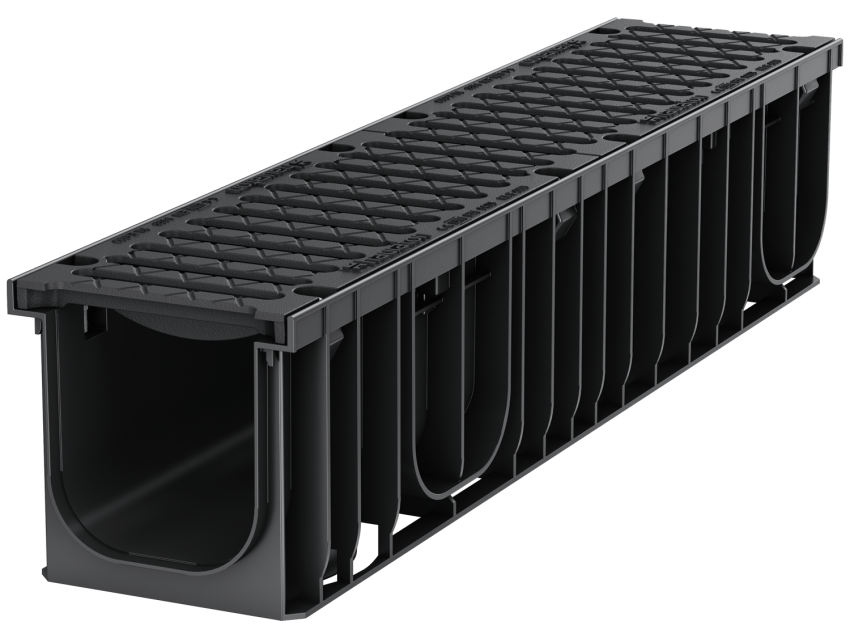

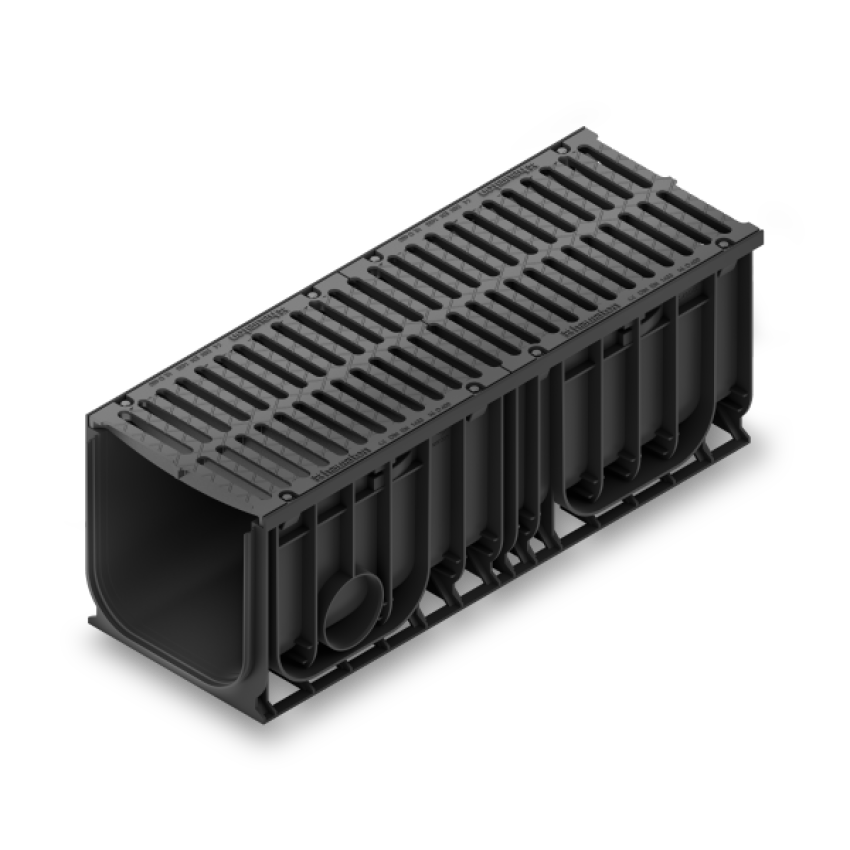

Detaljni prikaz sustava

%s
Kanali izrađeni od PE-PP materijala, s integriranim okvirom, prema DIN V 19580 / EN 1433, u skladu s CE normom, s muško-ženskim spojevima za točnu ugradnju
stabilna lijevano željezna rešetka izrađena od izdržljivog nodularnog lijevanog željeza
Pjeskolov sa dvostranom mogučnosću spajanja cijevi
Završna stijenka zatvorena
Završna stijenka s izljevom

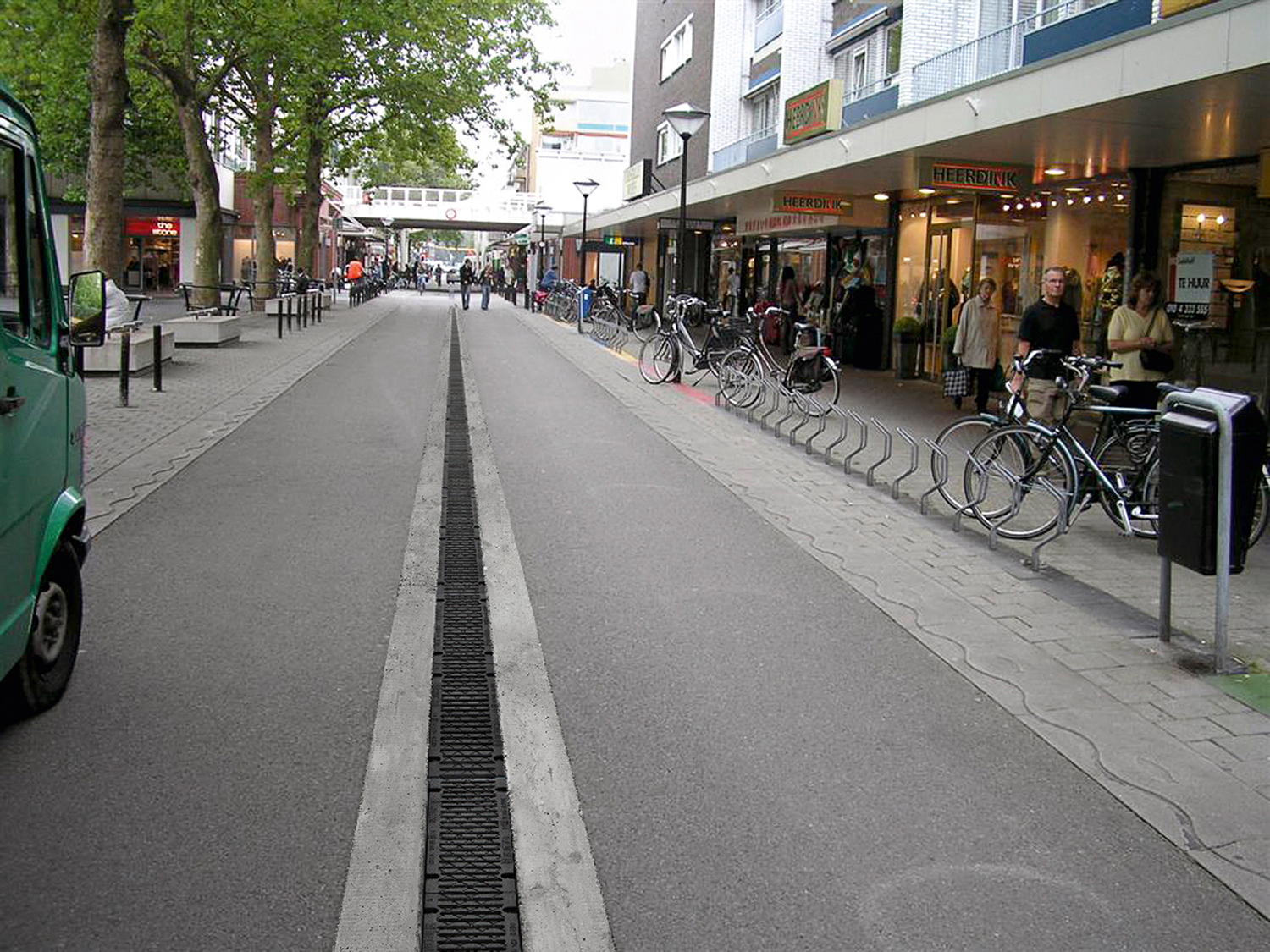

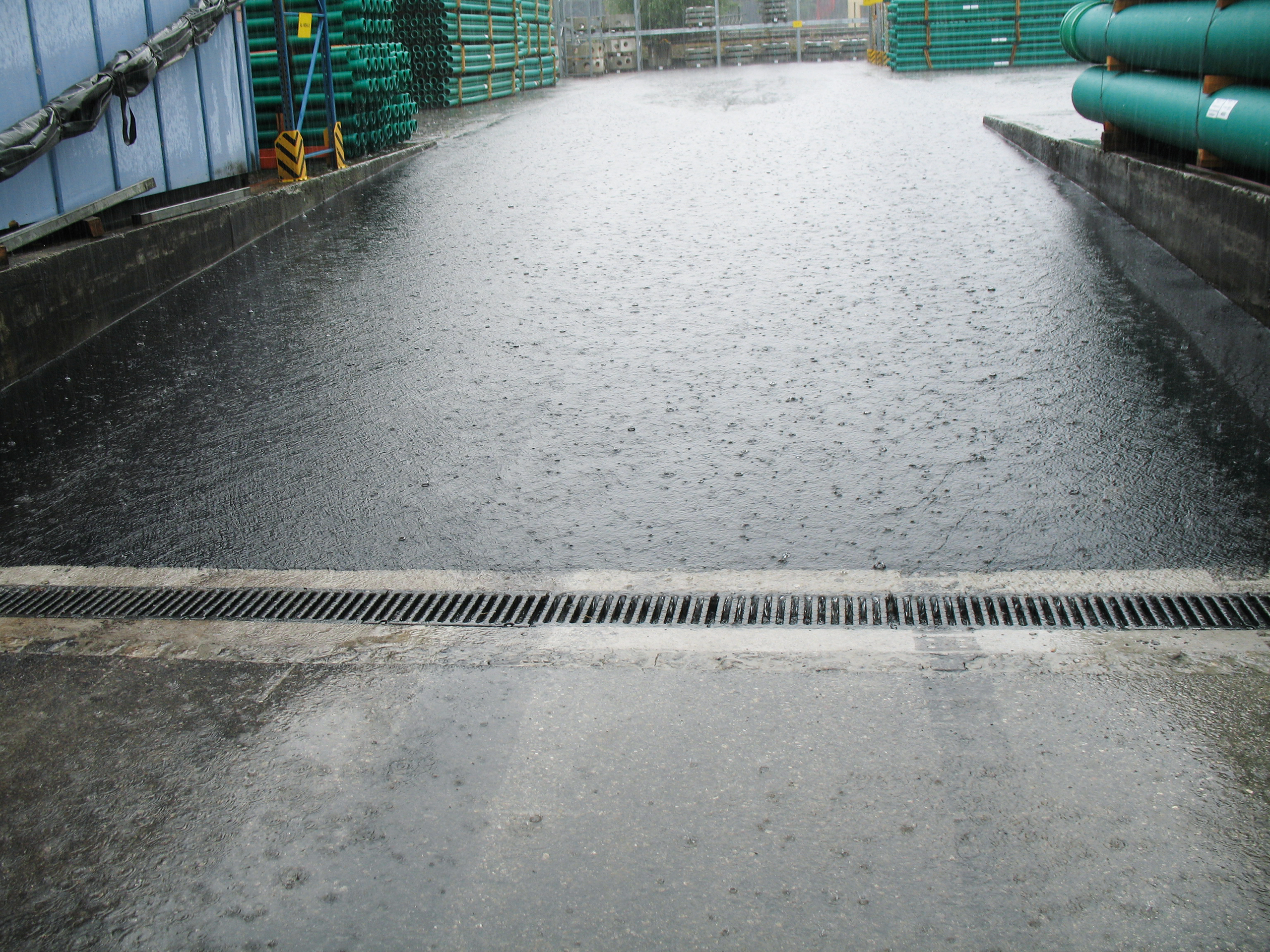

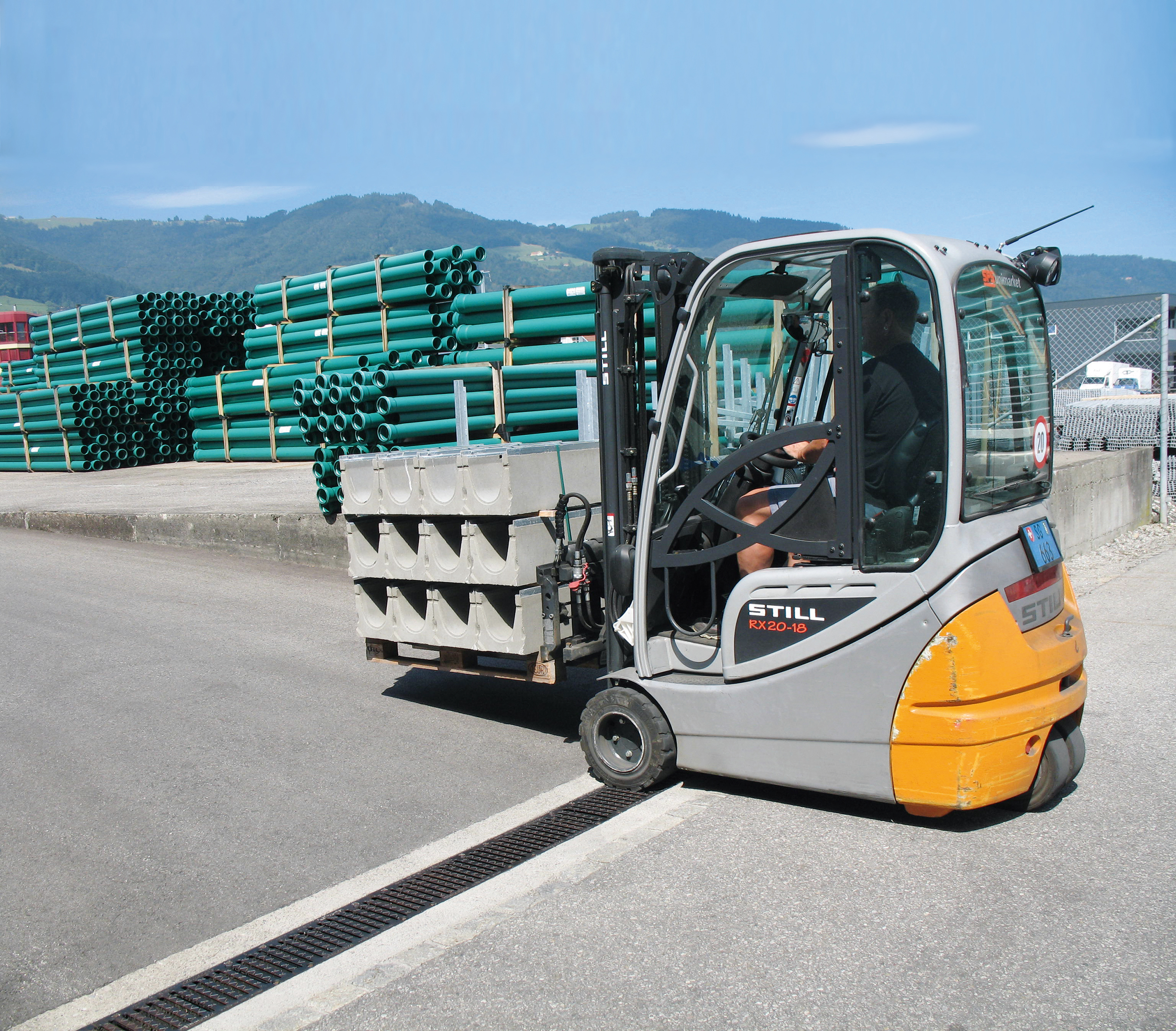

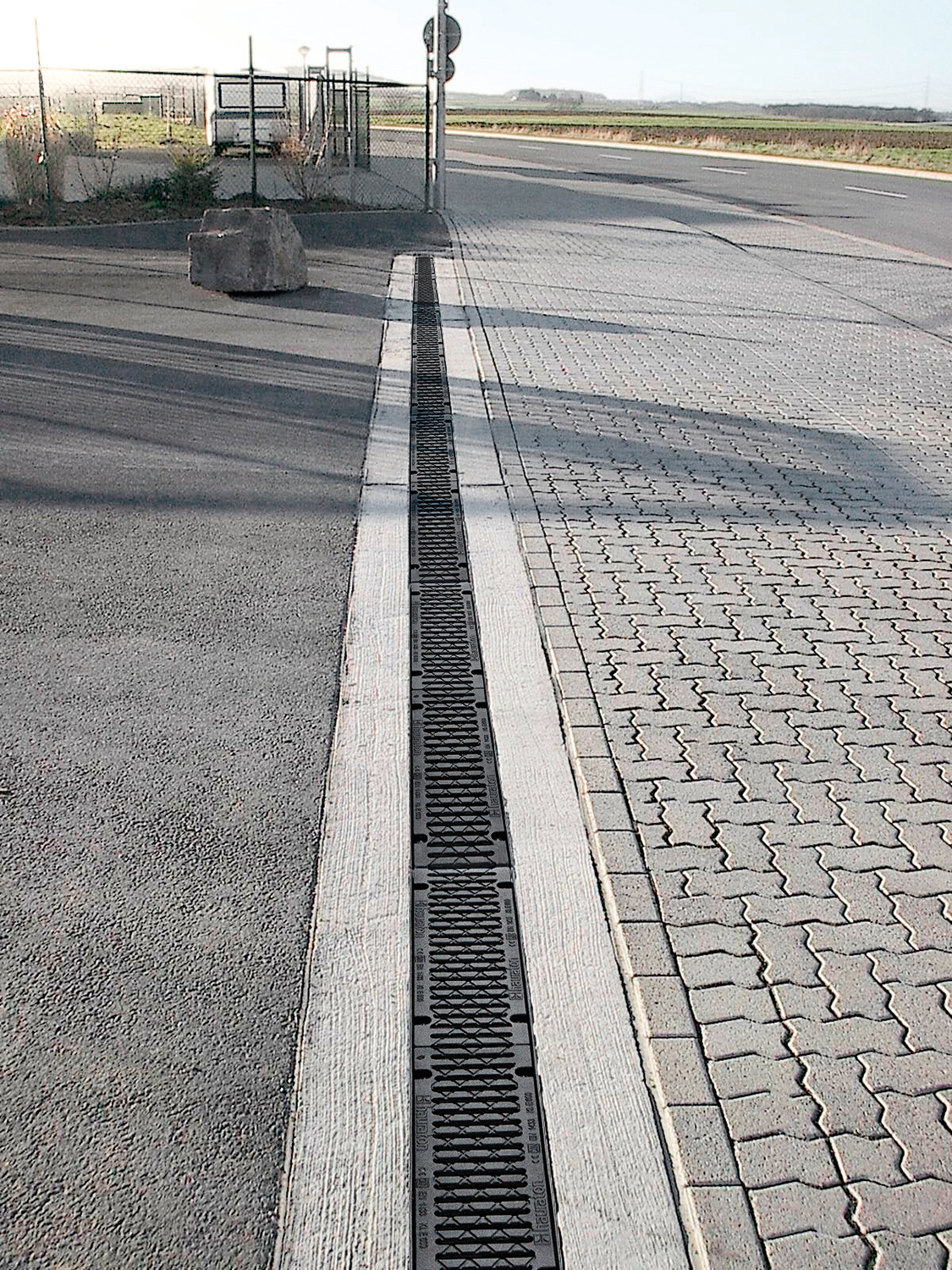

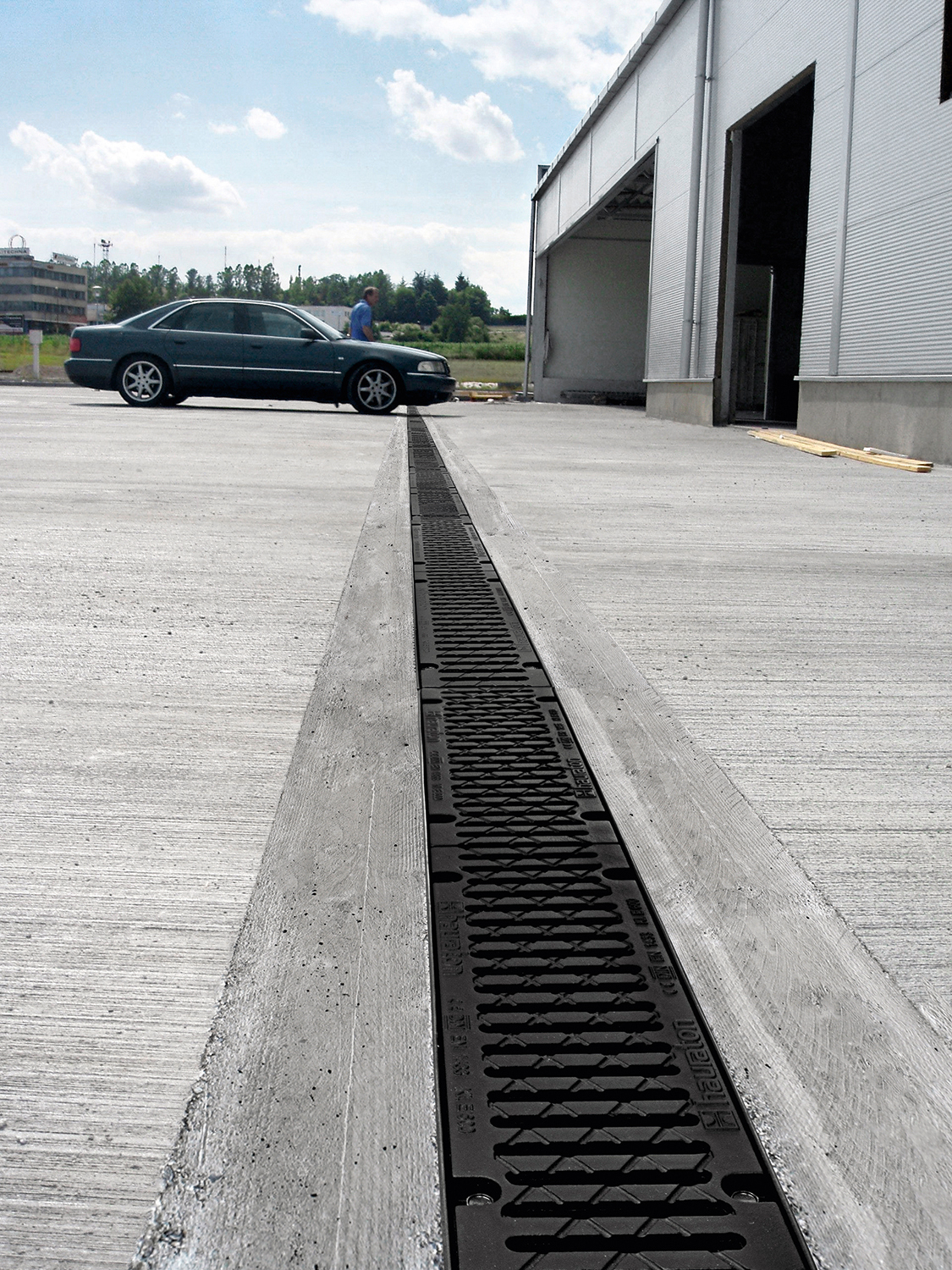

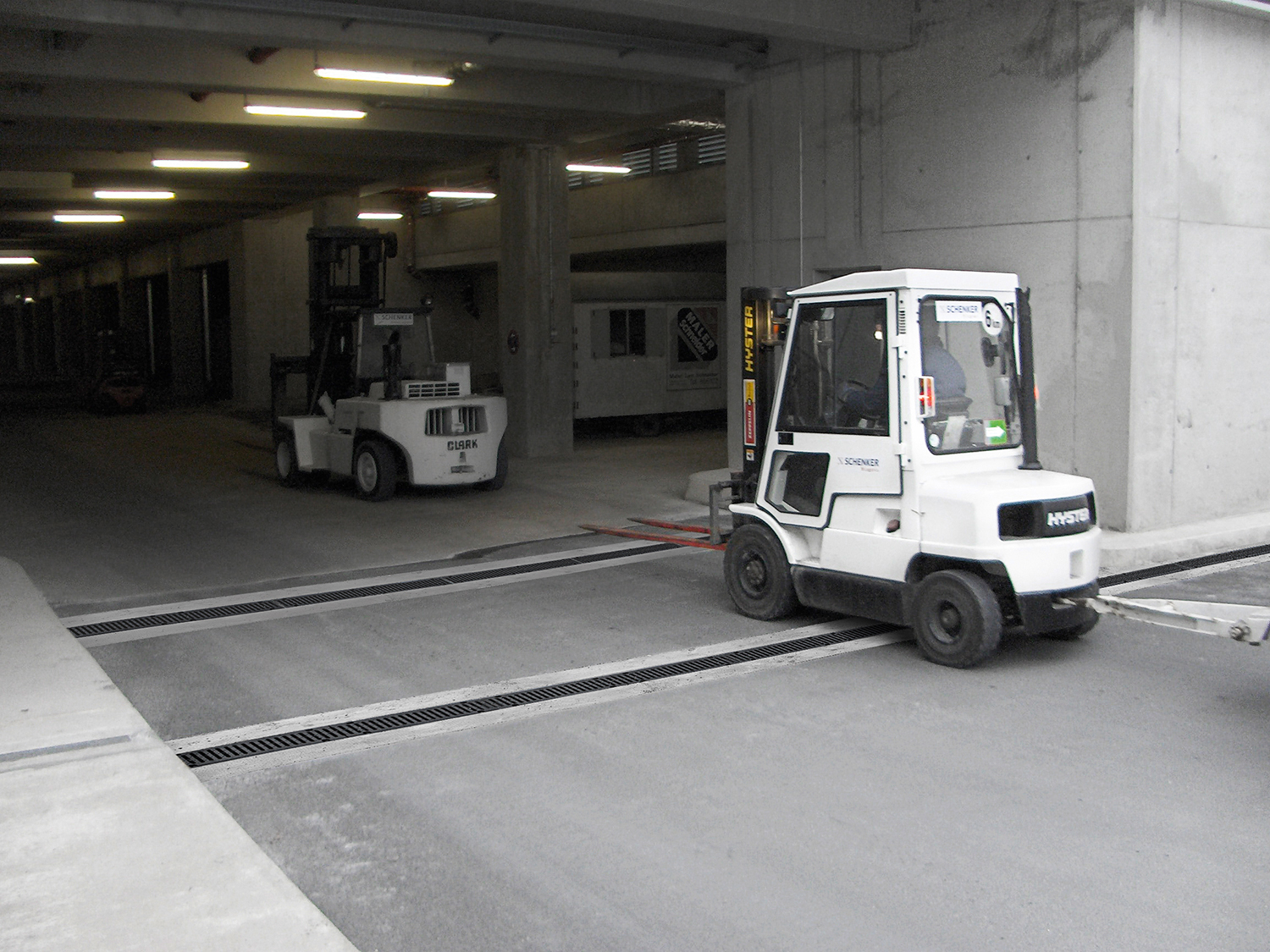

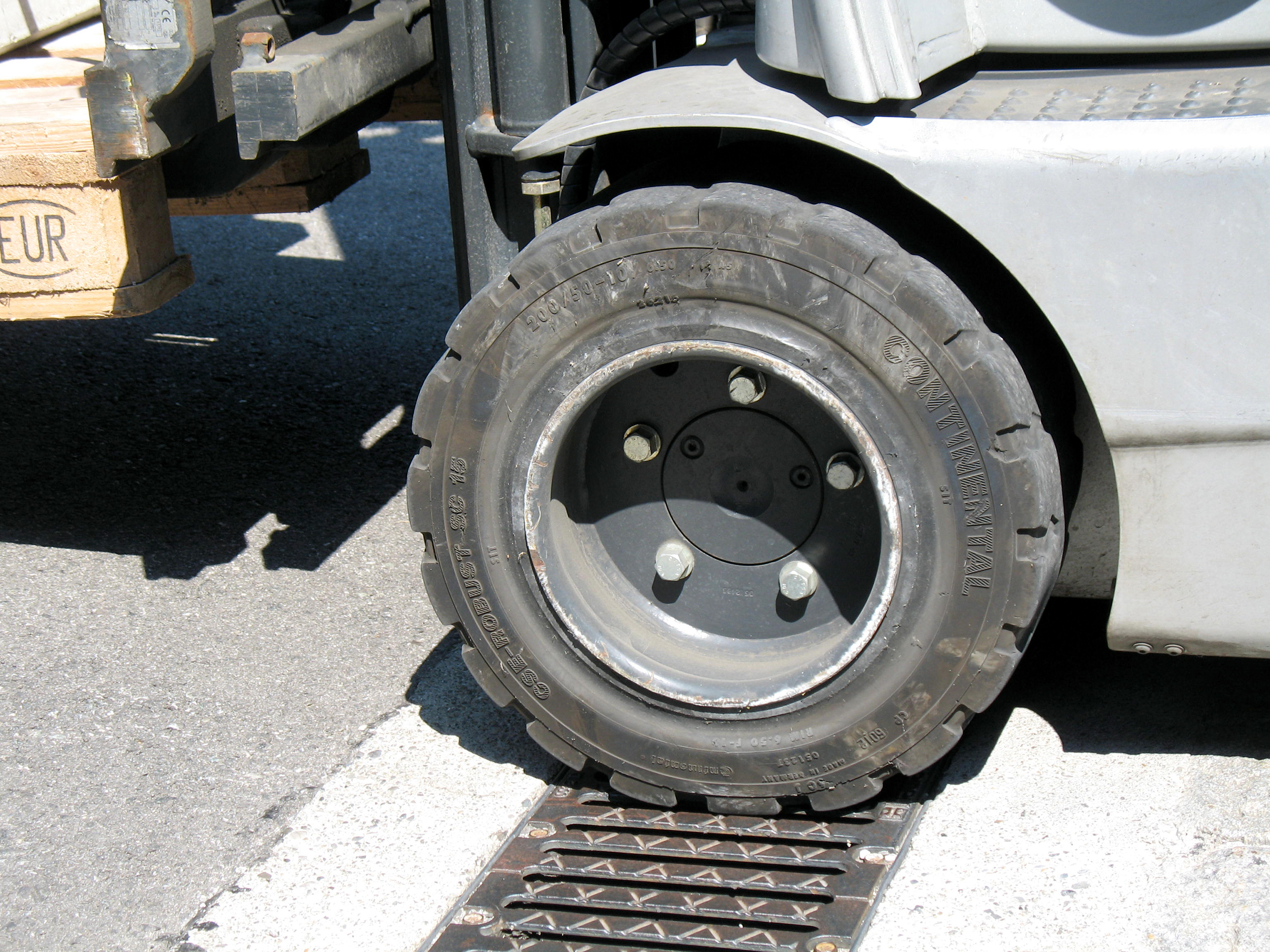

RECYFIX NC Applications
